CInterface.h File Reference

C-style interfaced to the library. More...

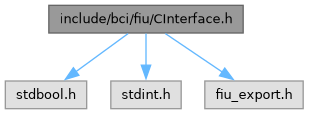

Include dependency graph for CInterface.h:

Classes
struct	FiuFirmwareVersion
	FIU firmware version. More...

Macros
#define	FIU_SUCCESS   (0)
	Success (no error).
#define	FIU_ERR_BOX_ID_OUT_OF_RANGE   (-1)
	Box ID out of range.
#define	FIU_ERR_CHANNEL_INDEX_OUT_OF_RANGE   (-2)
	Channel index out of range.
#define	FIU_ERR_INVALID_ARGUMENT   (-3)
	Invalid argument.
#define	FIU_ERR_INVALID_RESPONSE   (-4)
	Invalid response received from FIU.
#define	FIU_ERR_ALREADY_CONNECTED   (-5)
	Already connected.
#define	FIU_ERR_FAILED_TO_OPEN_PORT   (-6)
	Failed to open serial port.
#define	FIU_ERR_FAILED_TO_CONFIGURE_PORT   (-7)
	Failed to configure serial port.
#define	FIU_ERR_NOT_CONNECTED   (-8)
	Not connected.
#define	FIU_ERR_SEND_FAILED   (-9)
	Failed to send data through serial port.
#define	FIU_ERR_READ_TIMED_OUT   (-10)
	Read timed out.
#define	FIU_ERR_READ_FAILED   (-11)
	Read failed (serial port error).
#define	FIU_ERR_CHECKSUM_MISMATCH   (-12)
	Checksum mismatch on received message.
#define	FIU_ERR_SYNTAX_ERROR   (-13)
	Syntax error (from device).
#define	FIU_ERR_SYSTEM_INTERLOCKED   (-14)
	System interlocked (from device).
#define	FIU_ERR_RESOURCE_CONFLICT   (-15)
	Resource conflict (from device).
#define	FIU_ERR_UNKNOWN_DEVICE_ERROR   (-16)
	Unknown error (from device).
#define	FIU_ERR_INVALID_OBJECT   (-17)
	Invalid client object.
#define	FIU_ERR_BUFFER_TOO_SMALL   (-18)
	Buffer too small.
#define	FIU_ERR_ALLOCATION_FAILED   (-19)
	Allocation failed (C only).
#define	FIU_ERR_UNEXPECTED_EXCEPTION   (-20)
	Unexpected exception (C only).
#define	FIU_CHAN_STATE_DISCONNECTED   (0)
	Channel disconnected.
#define	FIU_CHAN_STATE_CONNECTED   (1)
	Channel connected.
#define	FIU_CHAN_STATE_VMEAS   (2)
	Voltage measurement mode.
#define	FIU_CHAN_STATE_IMEAS   (3)
	Current measurement mode.
#define	FIU_CHAN_STATE_FAULT   (4)
	Ground fault mode.

Typedefs
typedef void *	FiuClientHandle
	FIU client handle.

Functions
FIU_API unsigned int	FiuClient_Version ()
	Get the version of the library as an unsigned base 10 integer.
FIU_API const char *	FiuClient_ErrorMessage (int error)
	Get a message describing an error code returned by the library.
FIU_API int	FiuClient_Init (FiuClientHandle *handle_out)
	Initialize an FIU client.
FIU_API void	FiuClient_Destroy (FiuClientHandle *handle)
	Destroy an FIU client.
FIU_API int	FiuClient_Open (FiuClientHandle handle, const char *port)
	Open a serial connection to the FIU.
FIU_API int	FiuClient_Close (FiuClientHandle handle)
	Close the serial port.
FIU_API int	FiuClient_SetBoxID (FiuClientHandle handle, uint8_t box_id)
	Set the target box ID.
FIU_API int	FiuClient_GetBoxID (FiuClientHandle handle, uint8_t *box_id_out)
	Get the target box ID.
FIU_API int	FiuClient_SetChannelState (FiuClientHandle handle, unsigned int channel, uint8_t state)
	Set the state of a channel.
FIU_API int	FiuClient_SetAllChannelStates (FiuClientHandle handle, uint8_t state)
	Set the state of all channels.
FIU_API int	FiuClient_GetChannelStates (FiuClientHandle handle, uint8_t states_out[], unsigned int states_len)
	Get the states of all 24 channels.
FIU_API int	FiuClient_GetFirmwareVersion (FiuClientHandle handle, FiuFirmwareVersion *version_out)
	Get the firmware version loaded onto the FIU.
FIU_API int	FiuClient_SetSoftwareInterlock (FiuClientHandle handle, bool en)
	Set the state of the software interlock.
FIU_API int	FiuClient_GetInterlockState (FiuClientHandle handle, bool *interlock_out)
	Get the system interlock state.

Detailed Description

C-style interfaced to the library.
