C-style interface for the library. More...

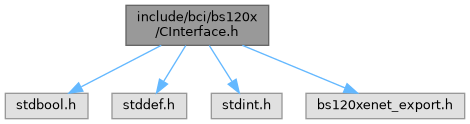

Include dependency graph for CInterface.h:

Classes
struct	Bs120xOpModeConfig
	BS1201 operational mode configuration structure. More...

struct	Bs120xStatus
	BS1201 status structure. More...

struct	Bs120xUnitConfig
	BS1201 unit configuration structure. Strings are null-terminated. More...

Macros
#define	BCI_ENET_ERR_SUCCESS (0)
	Success (no error)

#define	BCI_ENET_ERR_CHANNEL_INDEX_OUT_OF_RANGE (-100)
	Channel index out of range.

#define	BCI_ENET_ERR_INVALID_IP_ADDRESS (-101)
	Invalid IP address.

#define	BCI_ENET_ERR_ALREADY_CONNECTED (-102)
	Driver already connected.

#define	BCI_ENET_ERR_TCP_ALREADY_CONNECTED (-103)
	TCP client already connected.

#define	BCI_ENET_ERR_UDP_ALREADY_CONNECTED (-104)
	UDP listener already connected.

#define	BCI_ENET_ERR_UDP_SOCKET_OPEN_FAILED (-105)
	Failed to open socket for UDP listener.

#define	BCI_ENET_ERR_TCP_SOCKET_CONFIG_FAILED (-106)
	Failed to configure TCP socket.

#define	BCI_ENET_ERR_UDP_SOCKET_CONFIG_FAILED (-107)
	Failed to configure UDP socket.

#define	BCI_ENET_ERR_UDP_SOCKET_BIND_FAILED (-108)
	Failed to bind UDP socket.

#define	BCI_ENET_ERR_TCP_CONNECT_FAILED (-109)
	Failed to connect TCP client.

#define	BCI_ENET_ERR_READ_FAILED (-110)
	Failed to read message.

#define	BCI_ENET_ERR_SEND_FAILED (-111)
	Failed to send message.

#define	BCI_ENET_ERR_NOT_CONNECTED (-112)
	Not connected.

#define	BCI_ENET_ERR_FRAME_ID_MISMATCH (-113)
	Frame Arb ID doesn't match expected value.

#define	BCI_ENET_ERR_INVALID_FRAME_SIZE (-114)
	Frame size does not match known messages.

#define	BCI_ENET_ERR_AI_INDEX_OUT_OF_RANGE (-115)
	Analog input index out of range.

#define	BCI_ENET_ERR_DIO_INDEX_OUT_OF_RANGE (-116)
	DIO index out of range.

#define	BCI_ENET_ERR_BUFFER_TOO_SMALL (-117)
	Buffer too small.

#define	BCI_ENET_ERR_VOLTAGE_OUT_OF_RANGE (-118)
	Voltage out of range.

#define	BCI_ENET_ERR_CURRENT_OUT_OF_RANGE (-119)
	Current out of range.

#define	BCI_ENET_ERR_READBACK_TIMED_OUT (-120)
	UDP read timed out.

#define	BCI_ENET_ERR_INVALID_BOX_ID (-121)
	Invalid box ID.

#define	BCI_ENET_ERR_NO_CONFIG_DATA (-122)
	Config data has not been queried.

#define	BCI_ENET_ERR_INVALID_CONFIG_OPTION (-123)
	Invalid configuration option.

#define	BCI_ENET_ERR_WRONG_CONFIG_OPTION_TYPE (-124)
	Invalid configuration option type.

#define	BCI_ENET_ERR_INVALID_ARGUMENT (-125)
	Invalid argument.

#define	BCI_ENET_ERR_ALLOCATION_FAILED (-126)
	Allocation failed.

#define	BCI_ENET_ERR_UNEXPECTED_EXCEPTION (-127)
	Unexpected exception.

Typedefs
typedef void *	Bs120xEnetHandle
	Ethernet client handle.

Functions
unsigned int	Bs120xEnet_Version ()
	Get the library version as an unsigned base 10 integer.

const char *	Bs120xEnet_ErrorMessage (int error)
	Get an error message to describe an error code returned by the driver.

int	Bs120xEnet_Init (Bs120xEnetHandle *handle_out)
	Initialize an Ethernet client.

void	Bs120xEnet_Destroy (Bs120xEnetHandle *handle)
	Destroy an Ethernet client.

int	Bs120xEnet_Connect (Bs120xEnetHandle handle, const char interface_ip, const char device_ip, uint16_t udp_port, uint32_t udp_timeout, uint16_t tcp_port)
	Connect to a unit.

int	Bs120xEnet_Disconnect (Bs120xEnetHandle handle)
	Disconnect from the unit.

int	Bs120xEnet_SetDIOStates (Bs120xEnetHandle handle, const bool output[], size_t output_len, const bool direction[], size_t direction_len)
	Set the output states and directions for all DIO.

int	Bs120xEnet_SetAnalogOutputs (Bs120xEnetHandle handle, const float voltages[], size_t voltages_len)
	Set the voltages for all analog outputs.

int	Bs120xEnet_SetOpModeConfig (Bs120xEnetHandle handle, struct Bs120xOpModeConfig config)
	Configures the operating mode of the unit.

int	Bs120xEnet_SetAllCellCurrents (Bs120xEnetHandle handle, float isrc, float isnk)
	Sets the sinking and sourcing current limits for all cells.

int	Bs120xEnet_SetCellSinkCurrent (Bs120xEnetHandle handle, unsigned int cell, float isnk)
	Sets the sinking current limit for a single cell.

int	Bs120xEnet_SetCellSourceCurrent (Bs120xEnetHandle handle, unsigned int cell, float isrc)
	Sets teh sourcing current limit for a single cell.

int	Bs120xEnet_SetAllCellVoltage (Bs120xEnetHandle handle, float voltage)
	Sets the voltage for all cells.

int	Bs120xEnet_SetCellVoltage (Bs120xEnetHandle handle, unsigned int cell, float voltage)
	Sets the voltage for a single cell.

int	Bs120xEnet_EnableAllCells (Bs120xEnetHandle handle, bool enable)
	Enables or disables all cells.

int	Bs120xEnet_EnableCell (Bs120xEnetHandle handle, unsigned int cell, bool enable)
	Enables or disables a single cell.

int	Bs120xEnet_GetCellVoltage (Bs120xEnetHandle handle, unsigned int cell, float *voltage_out)
	Gets the voltage of a cell.

int	Bs120xEnet_GetAllCellVoltage (Bs120xEnetHandle handle, float voltage_out[], size_t voltage_out_len)
	Gets the voltages of all cells.

int	Bs120xEnet_GetCellCurrent (Bs120xEnetHandle handle, unsigned int cell, float *current_out)
	Gets the current of a cell in Amps.

int	Bs120xEnet_GetAllCellCurrent (Bs120xEnetHandle handle, float current_out[], size_t current_out_len)
	Get the currents of all cells in Amps.

int	Bs120xEnet_GetAnalogInput (Bs120xEnetHandle handle, unsigned int analog_input, float *voltage_out)
	Gets the voltage of an analog input.

int	Bs120xEnet_GetAllAnalogInput (Bs120xEnetHandle handle, float voltage_out[], size_t voltage_out_len)
	Gets the voltages of all analog inputs.

int	Bs120xEnet_GetDIOState (Bs120xEnetHandle handle, unsigned int dio, bool *state_out)
	Gets the output state of a DIO.

int	Bs120xEnet_GetAllDIOState (Bs120xEnetHandle handle, bool state_out[], size_t state_out_len)
	Gets the output states of all DIO.

int	Bs120xEnet_GetStatus (Bs120xEnetHandle handle, struct Bs120xStatus *status_out)
	Gets the status of the unit.

int	Bs120xEnet_GetUnitConfig (Bs120xEnetHandle handle, struct Bs120xUnitConfig *unit_config_out)
	Gets the configuration values of a unit after a QueryConfig call.

int	Bs120xEnet_Reset (Bs120xEnetHandle handle)
	Commands the unit to reset.

int	Bs120xEnet_SetIPAddress (Bs120xEnetHandle handle, const char *ip)
	Sets the unit IP address.

int	Bs120xEnet_QueryConfig (Bs120xEnetHandle handle)
	Sends a request to the unit for its configuration information.

int	Bs120xEnet_SetConfigOptionInt (Bs120xEnetHandle handle, const char *opt, int value)
	Sets an integer configuration option.

int	Bs120xEnet_SetConfigOptionBool (Bs120xEnetHandle handle, const char *opt, bool value)
	Sets a boolean configuration option.

int	Bs120xEnet_SetConfigOptionString (Bs120xEnetHandle handle, const char opt, const char value)
	Sets a string configuration option.

int	Bs120xEnet_SetConfigOptionFloat (Bs120xEnetHandle handle, const char *opt, double value)
	Sets a floating-point configuration option.

int	Bs120xEnet_EnableUDPData (Bs120xEnetHandle handle, bool enable)
	Enables the UDP data broadcast for the unit.

int	Bs120xEnet_SetUDPDataPort (Bs120xEnetHandle handle, uint16_t port)
	Sets the port for the unit's UDP data broadcast.

int	Bs120xEnet_SetUDPDataPeriod (Bs120xEnetHandle handle, uint32_t period)
	Sets the period for the unit's UDP data broadcast.

int	Bs120xEnet_SetBoxId (Bs120xEnetHandle handle, uint8_t id)
	Sets the unit's box ID.

int	Bs120xEnet_SetCANPeriod (Bs120xEnetHandle handle, uint32_t period)
	Sets the period for the unit's CAN broadcast.

int	Bs120xEnet_EnableCellInhibit (Bs120xEnetHandle handle, bool enable)
	Enables or disables the cell inhibit lines.

int	Bs120xEnet_GetConfigValueBool (Bs120xEnetHandle handle, const char opt, bool value_out)
	Get a boolean configuration value.

int	Bs120xEnet_GetConfigValueInt (Bs120xEnetHandle handle, const char opt, int value_out)
	Get an integer configuration value.

int	Bs120xEnet_GetConfigValueFloat (Bs120xEnetHandle handle, const char opt, float value_out)
	Get a floating-point configuration value.

int	Bs120xEnet_GetConfigValueString (Bs120xEnetHandle handle, const char *opt, char buf[], size_t len)
	Get a string configuration value.

Detailed Description

C-style interface for the library.
